ISO-A type
Hydraulic quick coupling > ISO-A type
Product Name:BT-S1 ISO A Hydraulic Quick Couplings
Model:BT-S1
Online Service
E-mail Us
PDF Download
Skype
1. Widely used In the equipment and system which need frequent connect and disconnect for operation or maintenance
2. Robust design offers a long trouble free service even in rugged condition
3. Protective dust plug is recommended for extend the coupler working life
4. All the wear part are heat hardened for durability
5. Comply to ISO7241-A standard
6. Interchangeable with PARKER ,CEJN
7. Double shut-off construction to prevent uncoupled leakage

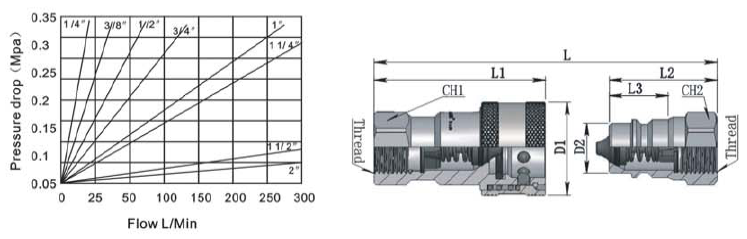

| PART NO. | ISO | Thread | L | L1 | L2 | D1 | Ch1 | Ch2 |
| BT-S1-02 | 6.3 | 1/4 | 71 | 50 | 35.5 | 26 | 19 | 19 |
| BT-S1-03 | 10 | 3/8 | 76 | 56 | 36.5 | 31.5 | 22 | 22 |
| BT-S1-04 | 12.5 | 1/2 | 90 | 66 | 44 | 39 | 27 | 27 |
| BT-S1-06 | 20 | 3/4 | 108 | 80 | 56 | 48 | 34 | 34 |
| BT-S1-08 | 25 | 1 | 119 | 93.5 | 59.5 | 58 | 41 | 41 |
| BT-S1-10 | 31.5 | 1 1/4 | 140 | 105 | 70 | 69 | 50 | 50 |
| BT-S1-12 | 40 | 1 1/2 | 150 | 115 | 75 | 74 | 56 | 56 |
| BT-S1-16 | 50 | 2 | 216 | 131 | 82 | 94 | 77 | 77 |
