ISO-A type
Hydraulic quick coupling > ISO-A type
E-mail Us
SkypeINTERCHANGE STANDARD:
Parker 2000
Perfecting AG
Faster PV
Aeroquip FD 72
Snap Tite 61
Dnp PPV/PPS
Safeway S40
Stucchi IRS
APPLICATION:
The KSW couplings are “Pull-Push” and have their main field of application in agriculture，such as mobile plant, trailers and agricultural equipment.
SPECIFICATION:
Materials: zinc-plated carbon steel body
Valves: poppet valves
Back-up ring: in pure Teflon
Seals: standard in nitrile NBR. On request FKM,EPDM and VMQ seals
Working temperature: with standard seals -25℃ + 125℃

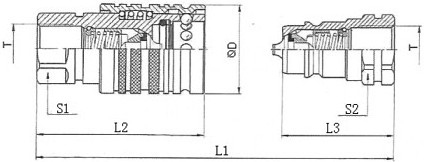

| BT | ISO | L1 | L2 | L3 | ØD | S1 | S2 | T |
| 8 | 12.5 | 95.5 | 74 | 46.5 | 38 | 30 | 27 | 1/2" BSP |
|
|
|
|
|
|
|
|
|
1/2" NPT |
|
|
|
|
|
|
|
|
|
3/4" UNF |
|
|
|
|
|
|
|
|
|
M22×1.5 |
