Product Name:KZE-BA Thread Locked Type Hydraulic Quick Coupling
Model:BT-KZE-BA
Online Service
E-mail Us
NO PDF
Skype
Applications:
Mobile equipment, agriculture machine and universal industrial equipment.
Features:
New valve design, it can resistance damage from high flow and the pressure of impulse that providing advanced performanceMachined from solid steel barstock for durability
The KZE-BA series employs a threaded sleeve locking mechanism, mates with matching male threads on the nipple. The two halves must be manually threaded together form connection.
New chrome plating treatment provides advanced anti-rust performance.
Compatible with GROMELLE 6000 Series and HOLMBURY TGW series.

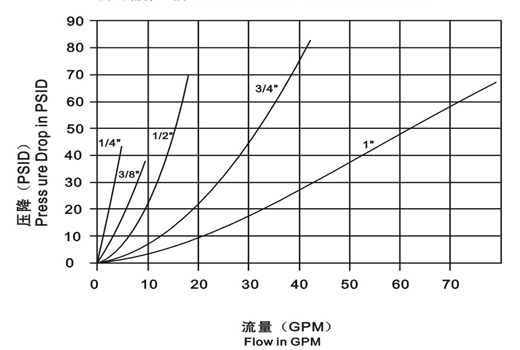

| Body Size(in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(PSI) | 10000 | 10000 | 10000 | 8500 | 6000 |
| Rated Flow(GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range(std seals): -20℃to+120℃ | |||||
| Standard seal material: NBR | |||||
