ISO-A type
Hydraulic quick coupling > ISO-A type
Product Name:BT-S6 ISO A Hydraulic Quick Couplings
Model:BT-S6
Online Service
E-mail Us
NO PDF
Skype
1. Comply to ISO7241-A standard
2. Proven ball locking mechanism with large numbers of hardened steel locking balls distribute the load evenly to resist wear and provide positive connection, the ball locking mechanism also provides accurate alignment and allows a swiveling action to reduce hose torque
3. Precise tooling make sure the flow smooth ,minimize the flow drop
4. Precision Guidevalve alignment the valve and ensure that the valves open fully
5. Valve seal was build-in the metal part to prevent seal wash out at high pressure
6.Interchangeable with PARKER6600，HANSEN HA 15000 FASTER ANV,CEJN X95

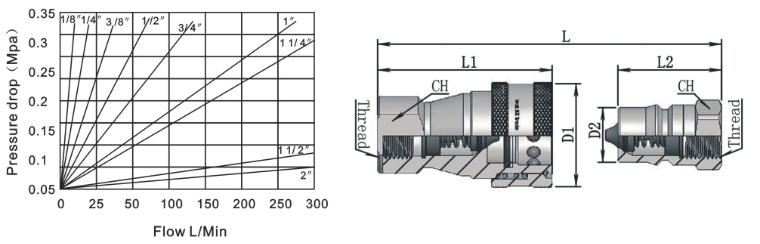

| PART NO. | ISO | Thread | L | L1 | L2 | D1 | Ch1 | Ch2 |
| BT-S6-02 | 6.3 | 1/4 | 71.1 | 50 | 35.5 | 26 | 19 | 19 |
| BT-S6-03 | 10 | 3/8 | 75 | 56 | 36.5 | 31.5 | 24 | 22 |
| BT-S6-04 | 12.5 | 1/2 | 92.4 | 68 | 46 | 38.6 | 30 | 27 |
| BT-S6-06 | 20 | 3/4 | 109 | 81.5 | 54.5 | 46.5 | 38 | 34 |
| BT-S6-08 | 25 | 1 | 135 | 96.5 | 62 | 57 | 45 | 41 |
