This BT-T thread lock wing quick couplings can be used in a wide range of
industrial applications where heave-duty coupling are required that can
be connected under pressure,with littel or no spillate,It is ideal for
connecting hydraulic lines on oil field equipment like power
tongs,swivels and mobile drilling rigs,it is aso widely used on dump
trailer to connect the tractor to wet-line hydraulic systems.
1. Thread lock mechanism, greatly improve pressure endurance and prevent disconnect accidently
2. Hard Chromium alloy ball valve with spring loaded for positive seating of the valve
3. Threaded valve retainer stop and alignment the valve positively
4. Interchanble with Parker 6100,Faster FB ,Safeway S51,Tomco A51,Aeroquip 5100

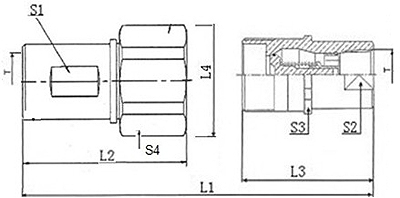

| PART NO | ISO | L1 | L2 | L3 | L4 | S1 | S2 | S3 | T |
| BTT-04 | 6.3 | 104 | 60 | 65.5 | 87.4 | 19.3 | 23.8 | 28.5 | 1/4 |
| BTT-06 | 10 | 104 | 60 | 65.5 | 87.4 | 19.3 | 23.8 | 28.5 | 3/8 |
| BTT-08 | 12.5 | 132 | 78.5 | 79 | 103 | 29.5 | 30 | 41 | 1/2 |
| BTT-12 | 20 | 132 | 78.5 | 79 | 103 | 29.5 | 30 | 41 | 3/4 |
| BTT-16 | 25 | 152 | 93 | 90 | 111 | 36.5 | 40 | 47.6 | 1 |
| BTT-20 | 31.5 | 160 | 101 | 94 | 131.8 | 45.2 | 47.7 | 54 | 1 1/4 |
| BTT-24 | 40 | 165 | 102 | 104.6 | 134.9 | 50.8 | 57.2 | 63.5 | 1 1/2 |
